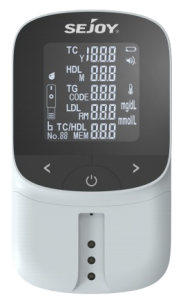

Lipid Panel Monitoring System BF-102
• Data management:
Connects wirelessly with Bluetooth Smart technology
• Easy to read
Large character display
• 5 Parameter 1 Test
Total Cholesterol、Triglyceride、HDL Cholesterol 、 Total Cholesterol/ HDL-C、LDL Cholesterol
• Compact, ergonomic design
• Fast, reliable lipid test results
• Easy coding with code card

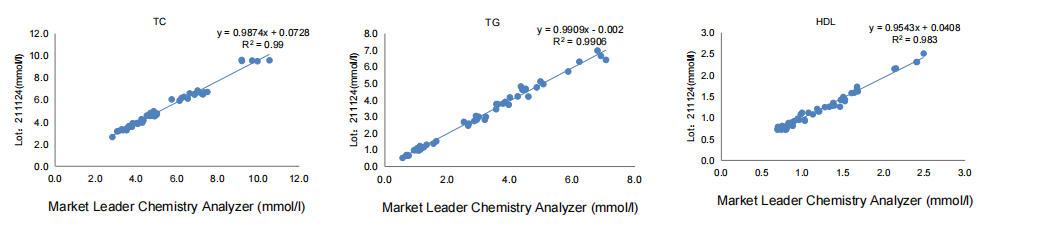

venous blood line chart:

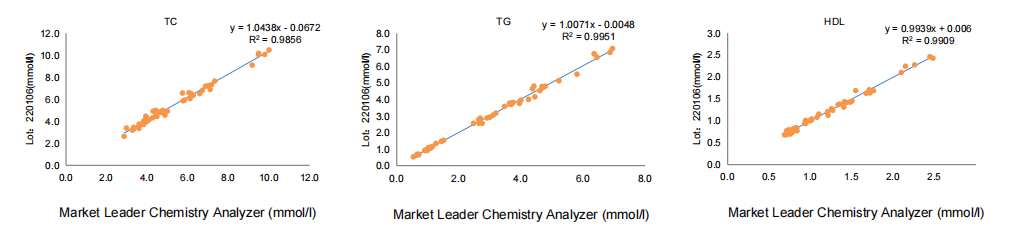

venous blood line chart:

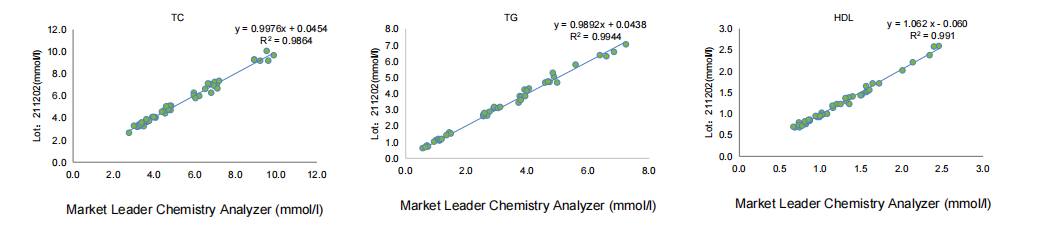

Pline chart:
| Measurement range | TC:2.59-10.35mmol/L(100-400mg/dL) | Type C Com | Matched with Type C cable:the rated input
voltage is 5V DC(no external power supply) |
| Measuring time | <= 180S | ||
| Specimen type | Whole blood (capillary blood and venous blood) | Power supply | 4.5VDC, 300mA(1.5V x 3 Alkaline batteries) |
| Loading volume | 35uL | Battery life | 100 hours or 1000 tests |
| Specimen type | Lipid panel meter displays all LCD strokes after power on | Meter size | 126mm*71mmmm*25mm |
| Display screen size | 41.6mm*43.0mm | ||
| Unit of measure | mg/dL or mmol/L | Weight | Approx. 113.6g(excluding battery) |
| Memoury function | 1000 sets of data | Operation mode | Continuous operation |
| Sound alert | When the sound is turned on,there is a sound alert
when the lipid panel meter is powered on or off |
Operation environment | 15-35℃ humidity<=80% |
| Storage environment | 0-50℃ humidity<=90% | ||
| Auto power off function | Approx 3 minutes after the last operation | Expected service life | 5 years |
