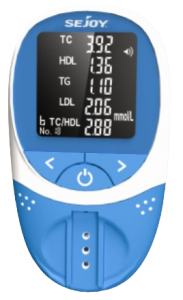

Lipid Panel Monitoring System BF-101

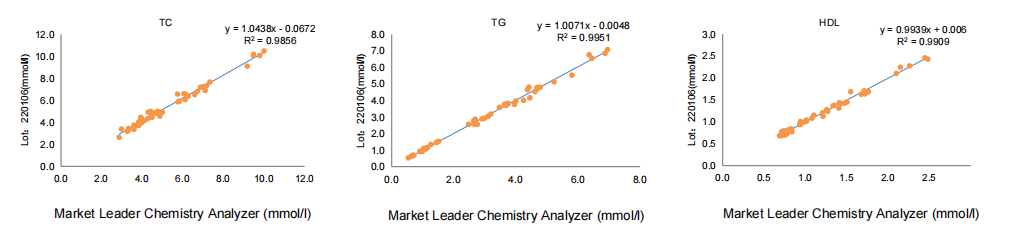

venous blood line chart:

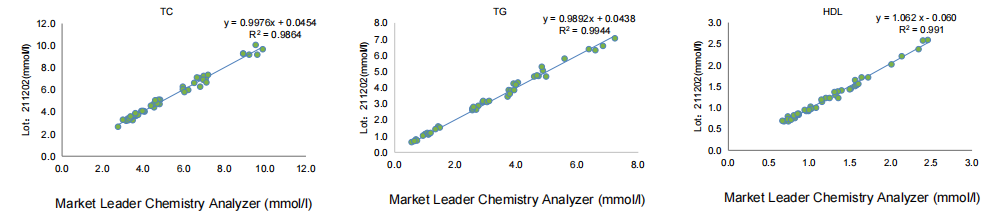

Cailary Blood line chart:

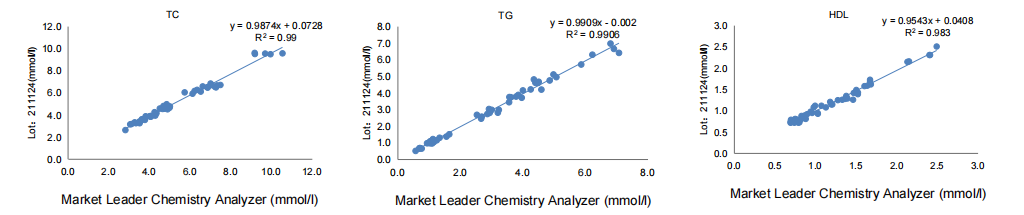

P line chart:
| Measurement range | TC:2.59-10.35mmol/L(100-400mg/dL)
HDL-C:0.39-2.59mmol/L(15-100mg/dL) TG:0.51-7.34mmol/L(45-650mg/dL) |
Type C Com | Matched with Type C cable:the rated input
voltage is 5V DC(no external power supply) |
| Power supply | 4.5VDC, 300mA(1.5V x 3 Alkaline batteries) | ||
| Specimen type | Whole blood (capillary blood and venous blood),plasma and serum | Battery life | 100 hours or 1000 tests |
| Meter size | 126mm*71mm*25mm | ||
| Display check | Lipid panel meter displays all LCD strokes after power on | Display screen size | 41.mm*43.0mm |
| Weight | Approx. 113.6g(excluding battery) | ||
| Loading volume | 35uL | Operation mode | Continuous operation |
| Unit of measure | mg/dL or mmol/L | Operation environment | 15-35℃ humidity<=80% |
| Low voltage | Screen and sound alert appear for low
battery level of the lipid panel meter |
Storage environment | 0-50℃ humidity<=90% |
| Expected service life | 5 years | ||
| Memory function | 1000 sets of data |
